Citroen C3: Ease of use and comfort / Boot fittings

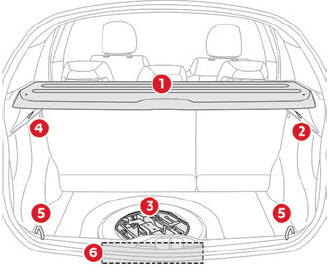

Citroen C3. Boot fittings

  1. Rear shelf
  2. Hooks
  3. Storage box
  4. Lighting
  5. Stowing rings
  6. Warning triangle

Storage well

Citroen C3. Boot fittings

  • Fully raise the boot carpet to access the storage well.

Depending on version, it includes:

  • A towing ring.
  • A hazard warning triangle.
  • A temporary puncture repair kit with the tool kit.

Citroen C3. Boot fittings On versions with a storage well, the storage well must be put back in place before loading the boot.

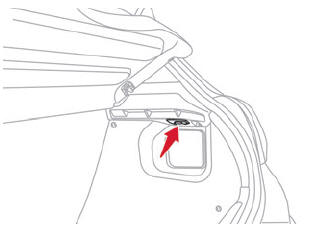

Hooks

Citroen C3. Boot fittings

They are used to hang shopping bags.

Citroen C3. Boot fittings Take care to only hang lightweight bags.

Rear shelf

Citroen C3. Boot fittings

To remove the shelf:

  • Unhook the 2 cords.
  • Gently raise the shelf, then remove it.

There are several ways of storing it:

  • Either upright behind the front seats.
  • Or flat on the bottom of the boot.

Boot lamp

It comes on automatically when the boot is opened and goes off automatically when the boot is closed.

The lighting time varies according to the circumstances:

  • when the ignition is off, approximately 10 minutes.
  • in energy economy mode, approximately 30 seconds.
  • with the engine running, unlimited.
