Citroen C3: Changing a bulb / Interior lighting
Citroen C3 2016-2025 Owners Manual / In the event of a breakdown / Changing a bulb / Interior lighting
Courtesy lamp (W5W)
- Using a thin, flap tip screwdriver, unclip the entire console surrounding the courtesy lamp.
- Remove the defective bulb and replace it.
- Fit the console back into place around the courtesy lamp and clip it correctly.
Courtesy lamp with LEDs
For the replacement of LEDs, contact a CITROËN dealer or a qualified workshop.

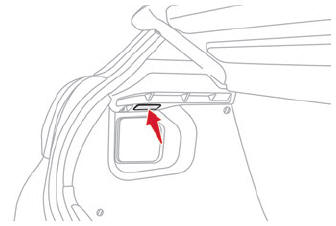

Boot (W5W)
- Unclip the unit by pushing the base from behind.
- Pull the bulb out and replace it.
- Put the unit back in place.
Rear lamps
Sidelamps (R10W)
Brake lamps (P21W)
Direction indicators (PY21W)
Reversing lamp (P21W) or Foglamp (PR21W)
Changing bulbs
These bulbs are changed from inside the boot...
