Citroen C3: Child lock / Electric child lock

This control prevents the opening of the rear
doors using their interior handles.
Activation/Deactivation

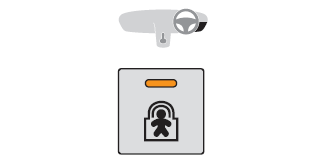

- With the ignition on, press this button to
activate/deactivate the child lock.
A message is displayed, confirming activation/
deactivation of the child lock.
When the indicator lamp is on, the child lock is
activated.
This system is independent
and in no
circumstances does it take the place of
the central locking control.
Check the status of the child lock each time
you switch on the ignition.
Always keep the electronic key with you when
leaving the vehicle, even for a short time.
In the event of a serious impact, the electric
child lock is switched off automatically to
permit the exit of the rear passengers.
Any other status of the
indicator lamp
indicates a malfunction of the electric
child lock.
Have it checked by a CITROËN dealer or a
qualified workshop.
This system prevents opening of a rear door
using its interior handle.
The control, red in colour, is located on the edge
of each rear door (marked by a label)...
Other information:
It has 3 positions:
1. Stop: inserting and removing the key,
steering column locked.
2. Ignition: steering column unlocked, ignition
on, Diesel preheating, engine running.
3. Starting.
Avoid attaching heavy
objects to the key
or the remote control. It would weigh
down on its shaft in the ignition switch and
could cause a malfunction.
Ignition on position
It allows the use of the veh..
Sidelamps (R10W)
Brake lamps (P21W)
Direction indicators (PY21W)
Reversing lamp (P21W) or Foglamp (PR21W)
Changing bulbs
These bulbs are changed from inside the boot.
Open the boot.
Remove the access flap on the
corresponding side trim.
Disconnect the lamp unit connector.
Unscrew the nut and remove it. Be careful
not to drop it inside the wing.
Unclip the lamp unit and carefully ..
