Citroen C3: Safety / Installing child seats

Citroen C3 2016-2023 Owners Manual / Safety / Installing child seats

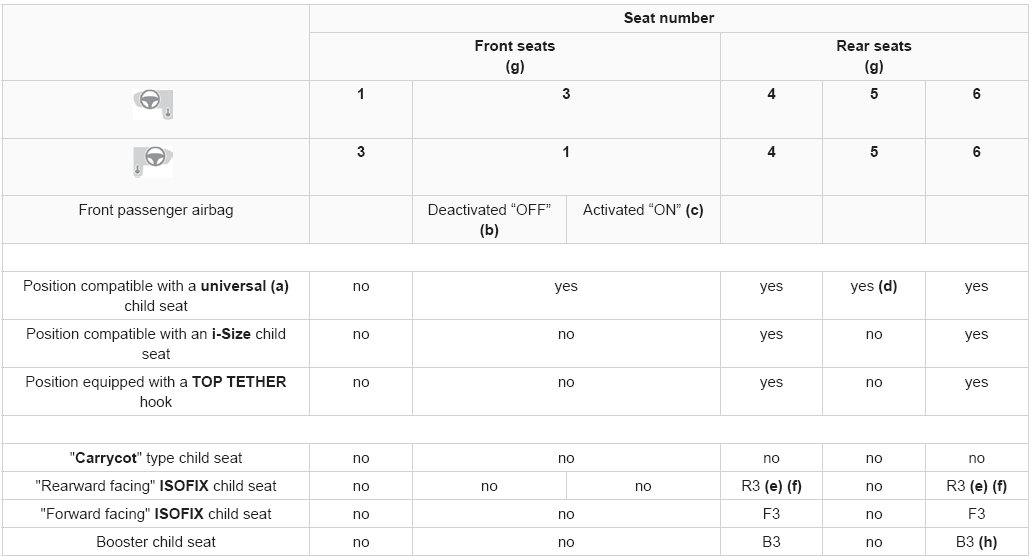

In compliance with European regulations, this table indicates the possibilities for installing child seats secured using the seat belt and universally approved (a) as well as the largest ISOFIX and i-Size child seats for the seat positions fitted with ISOFIX anchoring points in the vehicle.

Citroen C3. Installing child seats

Rules:

  • A position that is i-Size compatible is also compatible for R1, R2 and F2X, F2, B2.
  • A position that is R3 compatible is also compatible for R1 and R2.
  • A position that is F3 compatible is also compatible for F2X and F2.
  • A position that is B3 compatible is also compatible for B2.

(a) Universal child seat: child seat that can be installed in all vehicles using the seat belt.

(b) To install a "rearward facing" child seat at this seat position, the front passenger airbag must be deactivated ("OFF").

(c) Only a "forward facing" child seat is authorised at this seat position with the front passenger airbag activated ("ON").

(d) Never install a child seat with a support leg on the centre rear seat.

(e) Adjust the driver's seat to the highest position.

(f) Adjust the front passenger seat to the fully forward position.

(g) Depending on version, refer to the legislation in force in your country before installing a child in this seat position.

(h) Do not fold down the backrest.

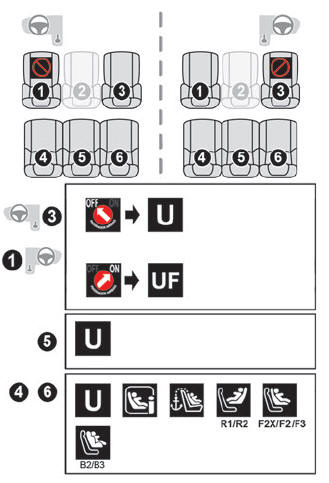

Citroen C3. Installing child seats

Key

Citroen C3. Installing child seats Seat position where the installation of a child seat is forbidden.

Citroen C3. Installing child seats Front passenger airbag deactivated.

Citroen C3. Installing child seats Front passenger airbag activated.

Citroen C3. Installing child seats Seat position suitable for the installation of a child seat secured using the seat belt and universally approved "rearward facing" and/or "forward facing".

Citroen C3. Installing child seats Seat position suitable for the installation a child seat secured using the seat belt and universally approved "forward facing".

Citroen C3. Installing child seats Seat position where securing an i-Size child seat is authorised.

Citroen C3. Installing child seats Seat position where securing a "forward facing" i-Size child seat is authorised.

Citroen C3. Installing child seats Presence of a TOP TETHER mounting at the rear of the backrest, authorising the attachment of a "forward facing" universal ISOFIX child seat.

Citroen C3. Installing child seats Presence of a TOP TETHER mounting at the rear of the backrest, authorising the attachment of a "forward facing" universal ISOFIX child seat.

Citroen C3. Installing child seats "Rearward facing" ISOFIX child seat:

  • R1: ISOFIX child seat for baby.
  • R2: ISOFIX reduced size child seat.
  • R3: ISOFIX large size child seat.

Citroen C3. Installing child seats "Forward facing" ISOFIX child seat:

  • F2X: ISOFIX child seat for toddlers.
  • F2: ISOFIX reduced height child seat.
  • F3: ISOFIX full height child seat.

Citroen C3. Installing child seats Booster child seat.

    i-Size child seats

    i-Size child seats have two latches that engage on the two rings A. These i-Size child seats also have: either an upper strap that is attached to ring B...
