Citroen C3: CITROËN Connect Radio / First steps

Citroen C3. First steps With the engine running, a press mutes the sound.

With the ignition off, a press turns the system on. Increase or decrease the volume using the wheel or the "plus" or "minus" buttons (depending on the equipment).

Use the buttons on either side of or below the touch screen for access to the menus, then press the virtual buttons in the touch screen.

Depending on the model, use the "Source" or "Menu" buttons on the left of the touch screen for access to the menus, then press the virtual buttons in the touch screen.

At all times it is possible to display the rolling menus by pressing the screen briefly with three fingers.

All of the touch areas of the screen are white.

For pages with multiple tabs at the bottom of the screen, it is possible to switch between pages either by tapping the tab for the desired page, or by using a finger, sliding the pages to the left or to the right.

Press in the grey zone to go back up a level or to confirm.

Press the back arrow to go back a level or confirm.

Citroen C3. First steps The touch screen is of the "capacitive" type.

To clean the screen, use a soft, non-abrasive cloth (e.g. spectacles cloth) with no additional product.

Do not use sharp objects on the screen.

Do not touch the screen with wet hands.

Certain information is displayed permanently in the upper bar of the touch screen:

  • Air conditioning status information (depending on version), and direct access to the corresponding menu.
  • Radio Media and Telephone menu status information.
  • Privacy status information.
  • Access to the touch screen and digital instrument panel settings.

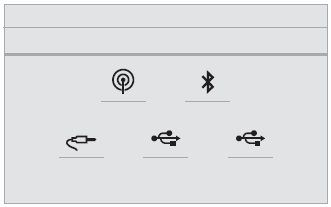

Audio source selection (depending on equipment):

  • FM/DAB/AM radio stations (depending on 11 equipment).
  • Telephone connected via Bluetooth and Bluetooth multimedia broadcast (streaming).
  • USB Memory stick.
  • Media player connected via the auxiliary socket (depending on equipment).

Citroen C3. First steps

Citroen C3. First steps In the "Settings" menu, it is possible to create a profile for an individual or for a group of people with shared interests, and configure a wide range of settings (radio presets, audio settings, ambiences, etc.). Settings are applied automatically.

Citroen C3. First steps In very hot conditions, the volume may be limited to protect the system. It may enter standby mode (with the screen and sound off) for 5 minutes or more.

The system will resume normal operation when the temperature in the passenger compartment has dropped.
