Citroen C3: Mirrors / Door mirrors

Each fitted with an adjustable mirror glass permitting the lateral rearward vision necessary for overtaking or parking.

They can also be folded in for parking in narrow spaces.

Demisting/Defrosting

Citroen C3. Door mirrors If the vehicle is so equipped, demisting/ defrosting of the heated door mirrors is performed when the heated rear screen is switched on.

For more information on Rear screen demisting/defrosting, refer to the corresponding section.

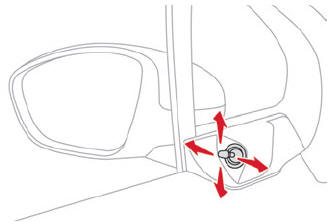

Manual adjustment

Citroen C3. Door mirrors

  • Move the lever in any of the 4 directions to correctly position the mirror glass.

Citroen C3. Door mirrors As a safety measure, the mirrors should be adjusted to reduce the "blind spots". The objects that you see in the mirrors are in fact closer than they appear. Take this into account in order to correctly judge the distance of vehicles approaching from behind.

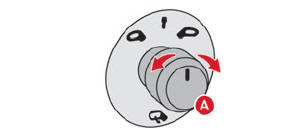

Electric adjustment

Citroen C3. Door mirrors

  • Turn control A to the right or to the left to select the corresponding mirror.
  • Move the control in any of the four directions to adjust.
  • Return the control to the central position.

Manual folding

The mirrors can be folded manually (parking obstruction, narrow garage, etc.).

  • Turn the mirror towards the vehicle.

Electric folding

If the vehicle is so equipped, the mirrors can be folded electrically from the inside, with the vehicle parked and the ignition on:

Citroen C3. Door mirrors

  • Move the control A down.

    Mirrors

    ..

    Rear view mirror

    Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to the driver caused by the sun, headlights of other vehicles, etc...
