Citroen C3: CITROËN Connect Radio / Menus
Applications
Access configurable equipment.

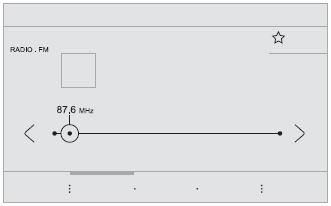

Radio Media
Select an audio source or radio
station.
Telephone
Connect a mobile phone via
Bluetooth®.

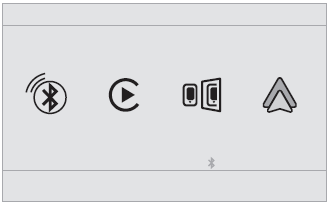

Run certain applications on a smartphone
connected via MirrorLinkTM, CarPlay® or Android
Auto.
Settings
Configure a personal profile
and/or
configure the sound (balance, ambience,
etc.) and the display (language, units, date, time,
etc.).
Driving
Activate, deactivate or
configure certain
vehicle functions.

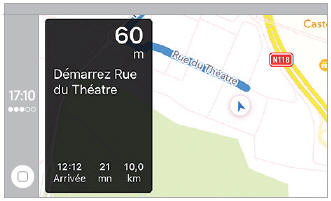

Navigation
Configure the navigation and
select your
destination via MirrorLinkTM, CarPlay® or
Android Auto.

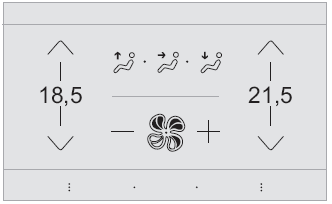

Air conditioning
Manage various temperature and
air flow
settings.
Voice commands:
This control is located on the steering
wheel or at the end of the lighting control stalk
(depending on equipment).
Short press, smartphone voice commands via
the system...
Viewing photos
Insert a USB memory stick in the USB port.
To protect the system, do
not use a USB
hub.
The system can read folders and image files in
the formats: ...
Other information:
The engine represented is an example given for
illustration purposes only.
The locations of the following elements may
vary:
Air filter.
Engine oil dipstick.
Engine oil filler cap.
Petrol engine
Diesel engine
Screenwash fluid reservoir
Engine coolant reservoir
Brake fluid reservoir
Battery
Remote earth point (-)
Fusebox
Air filter
Engine oil filler cap
Engine oil dipstick
Primi..
A message is displayed on the instrument panel
when the battery needs changing.
Without Keyless Entry and Starting
Battery type: CR2032 / 3 volts.
With Keyless Entry and Starting
Battery type: CR2032 / 3 volts.
Unclip the cover by inserting a small
screwdriver in the slot and raise the cover.
Remove the discharged battery from its
housing.
Insert the new battery, observing the polari..
