Citroen C3: Safety / ISOFIX child seats
“ISOFIX" mountings
The seats shown below are fitted with ISOFIX compliant mountings:
The mountings comprise three rings for each seat, indicated by a marking:
- Two rings A, located between the vehicle seat backrest and cushion.
The 2 latches of ISOFIX child seats are secured to them.
- One ring B, located behind the seat, called the TOP TETHER, for fixing seats fitted with an upper strap.
* Depending on country of sale.
This system prevents the child seat from tipping forward in the event of a front impact.
This ISOFIX mounting system provides fast, reliable and safe fitting of the child seat in the vehicle.
To secure the child seat to the TOP TETHER:
- Remove and stow the head restraint before installing the child seat on this seat (refit it once the child seat has been removed).
- Route the strap of the child seat behind the seat backrest, in-between the 2 head restraint anchor points.
- Secure the upper strap hook to ring B.
- Tighten the upper strap.
When fitting an ISOFIX
child seat to the
left-hand rear seat of the bench seat,
before fitting the seat, first move the centre
rear seat belt towards the middle of the
vehicle, so as to avoid the seat interfering
with the operation of the seat belt.
An incorrectly installed
child seat
compromises the child's safety in the
event of an accident.
Strictly observe the fitting instructions provided in the user guide supplied with the child seat.
For information about the
options for
fitting ISOFIX child seats in your vehicle,
refer to the summary table.

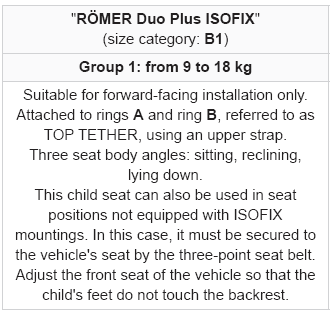

Recommended ISOFIX child seats
Also consult the user guide
from the child
seat’s manufacturer to find out how to
install and remove the seat.
Locations for child seats secured using the seat belt
In accordance with European regulations, this table indicates the options for
installing universally approved (a) child seats secured using the seat belt,
based on the child’s weight and the seat position in the vehicle...
i-Size child seats
i-Size child seats have two latches that engage on the two rings A.
These i-Size child seats also have:
either an upper strap that is attached to ring B...
